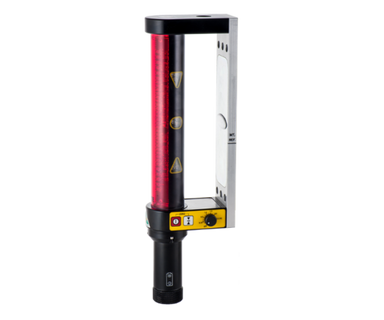

MOBA Laserguide Mini R.45.TC Machine Control Laser Receiver

User-Friendly Laser Receiver with Tilt Compensation

The Laserguide R.45.TC automatically monitors and compensates for boom arm tilt, eliminating the need for manual adjustments!

MOBA Laserguide Mini R.45.TC Features

Visual receiver for all machine types
Integrated magnetic clamp
Tilt compensation
Fully waterproof
Economically priced
190 mm receiver length
Single D Cell battery operation

AUTOMATIC TILT COMPENSATION

Using internal accelerometers, the receiver continually monitors the deviation of the boom arm from vertical and calculates and compensates the display ensuring it is always measuring the precise height of the bucket, irrespective of arm inclination.

SPECIFICATIONS

Receiver length:	190 mm
Operating distance:	Up to 500m (laser dependent)
Tilt compensation:	Up to 42 deg
Detected laser:	Red or infrared
Shock protection:	Yes
Centre band adjustment:	Yes
Buzzer:	Yes
Connectivity:	No
Power source:	1 X D cell battery
Battery life:	45 hrs
Mounting:	Integrated magnetic bracket
Waterproof:	Yes
Dimensions:	390 x 69 x 117 mm

MOBA Laserguide Mini R.45.TC Machine Control Laser Receiver product Manual
