Description
Are you tired of equipment that’s hard to align and takes too long to set up?
The Leica Rugby 640G leaves you in control, providing fast, automatic leveling and precise alignment, so your setup is quick and error-free every time.

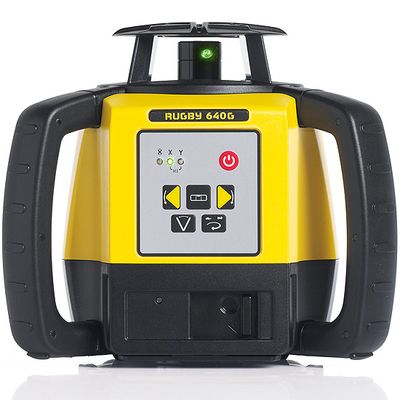

Leica Rugby 640G Rotating Laser – Designed for Versatility Inside and Out
Equipped with innovative green diode technology, the Rugby 640G offers exceptional visibility for indoor use. It is suitable for a wide range of leveling, aligning, and squaring tasks both indoors and outdoors.
You can work with ease using offsets, thanks to the Rod Eye receiver’s digital readout, which provides precise measurements. The receiver has a capture window of 70 mm, with 35 mm up or down from the centre point, allowing you to easily and accurately monitor height differences.
The Scan 90 feature allows you to quickly move the laser beam 90 degrees to either side, simplifying layout tasks.
With Plumb Down, the laser automatically and accurately aligns vertically over a reference point, ensuring precise vertical positioning. The Sleep Mode function conserves battery power and suspends operation without disrupting your setup, so you can leave the laser unattended confidently.

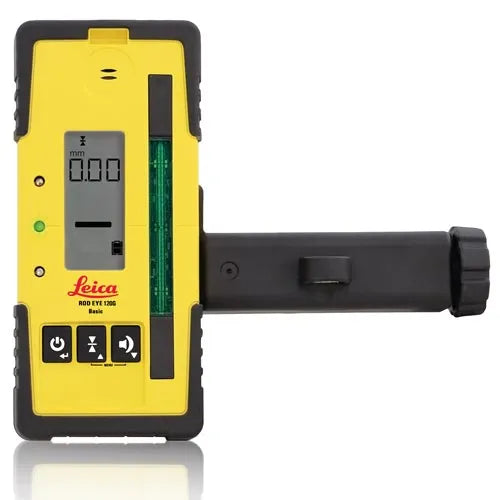

The Rod Eye 120G’s digital readout precisely measures offsets from the laser beam’s position, further enhancing convenience and saving you valuable time during your work.
Feature-Packed and Built for All Conditions: Discover the Leica 640G Rotating Laser
-
New green diode technology for excellent visibility indoors and outdoors
-
Suitable for leveling, aligning, and squaring in any environment
-
Easy offset adjustments with the Rod Eye receiver’s digital readout
-
Scan 90 feature for quick rotation of the laser beam 90° to the left or right
-
Plumb Down for automatic vertical alignment over a reference point
-
Sleep Mode to conserve battery and suspend operation without disrupting the setup
-
Precise measurements of offsets with the Rod Eye 120G digital readout
-
3 Year Warrenty
| Functionality | Self-levelling horizontal, vertical, 90° and manual slope in dual axis |
|---|---|
| Range (diameter) | 400 m |
| Self-levelling accuracy (at 25°C) | ± 2.2 mm @ 30 m |
| Self-levelling range | ± 5° |
| H.I. elevation alert | YES |
| Rotation speeds | 0, 2, 5, 10 rps |
| Scanning modes | 10°, 45°, 90° |
| Scan 90 | Yes |
| Plumb up | Yes |
| Plumb down | Yes |
| Sleep mode | Yes |
| Laser diode type / class | 520 nm / Class 2 |
| Dimensions (HxWxD) | 212 x 239 x 192 mm |
| Weight with batteries | 2.6 kg |
| Protection class | IP67 (splash water / dust proof) |
| Operating temperature range | -20°C to +50°C |
| Remote range (radius) | 100 m |
Leica Rugby 640G User Manual
